Item No. : BRS-01SR(MB)
Product Name : Magnetic base and hook stanchion - 4 way
Product Description
A next-generation stanchion system
combining innovation, flexibility, and convenience for modern spaces.

Perfect for exhibitions, retail spaces, crowd control, and events
—whether straight lines, curves, or complex layouts, everything is easy to set up.



proimages/LOGO/LOGO_ENG.jpg
Product Introduction

Four Way Magnetic Base & Magnetic Hook Retractable Belt Barrier (Belt Length:200cm)

Patent: US6,776,398B1 (USA), 200502642 (SPAIN), 3114574 (JANPAN), 226346 (TW)
ZL 03 2 65882.6 (CHINA)

proimages/2025-磁吸圍欄/MB.png
  • Quick installation positioning device
  • Smallar Diameter Ø145mm / Stainless Steel #430
  • Small Footprint & Low Profile
    Compact and clean design that saves space and maintains a professional appearance.
proimages/2025-磁吸圍欄/MH.png
  • Magnetic hook with positioning device can maintain the parallelism of belt.

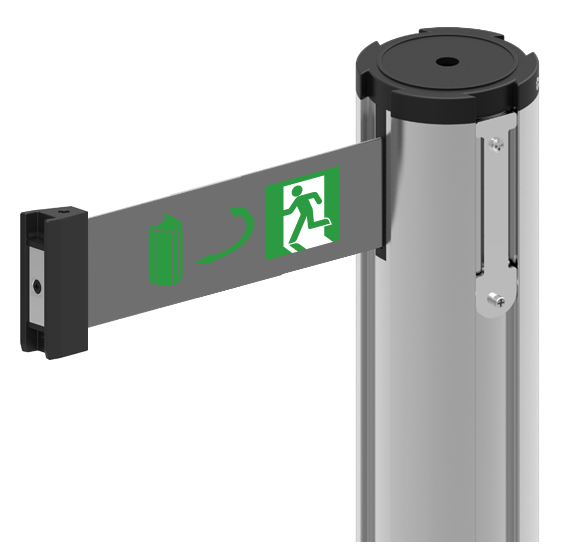

  • Emergency Breakaway Belt End
    Standard safety feature that allows quick evacuation in case of emergency.

Stable & Reliable Connections
Both the base and hook magnetic systems provide secure alignment, preventing tilting or misplacement.
Strong magnetics keep post stable on the floor.

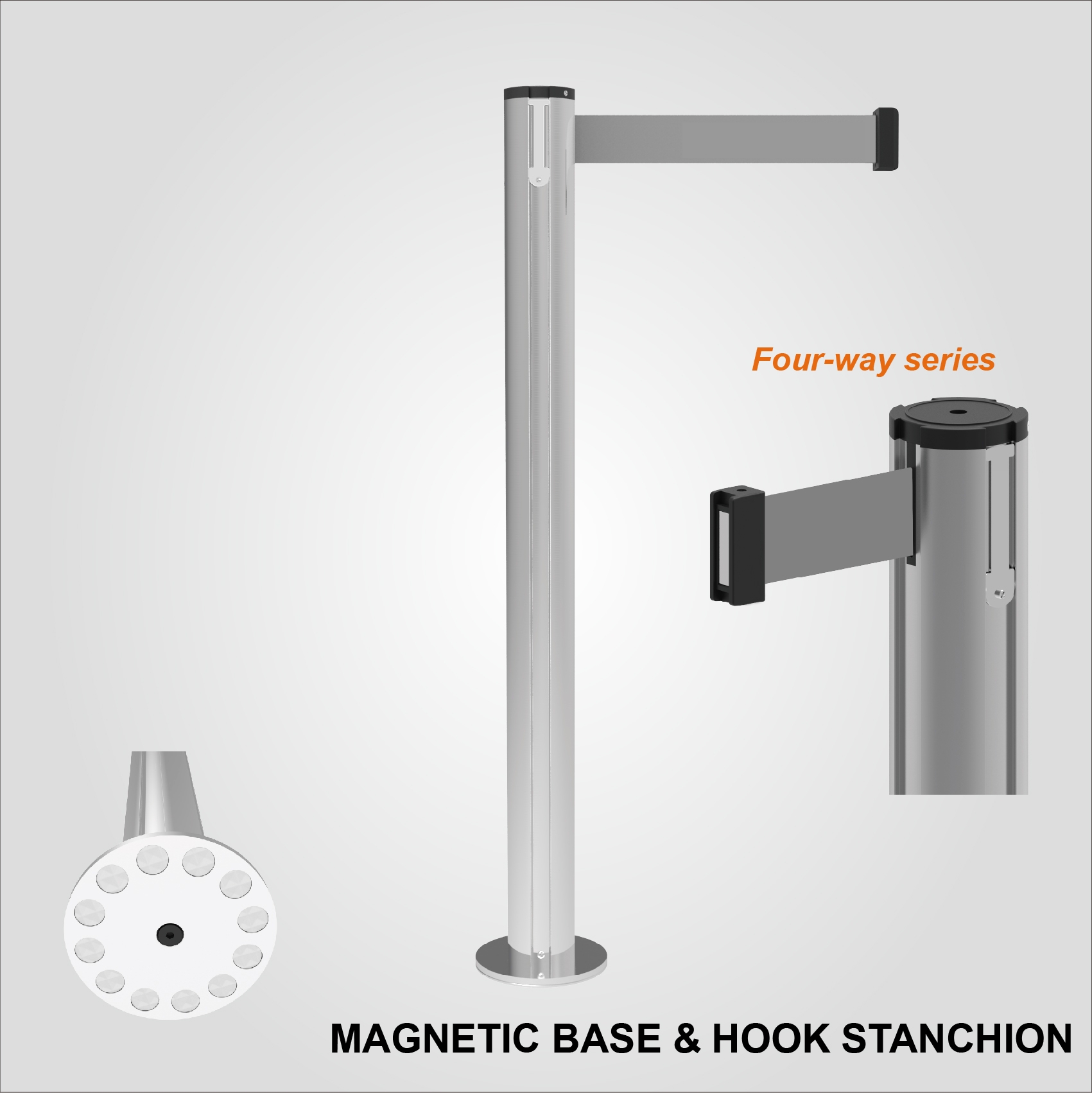

Magnetic Base with 12 High-Power Magnets
Each base is equipped with 12 neodymium magnets, delivering an exceptional holding strength with more than 10 kgf tip-over force, ensuring the post remains stable even in busy environments.proimages/2025-磁吸圍欄/磁吸底座示意.png

Taiwan Taoyuan International Airport real picture

proimages/2025-磁吸圍欄/airport-A.png
proimages/2025-磁吸圍欄/airport-B.png
Type Magnetic base and hook Retractable belt barrier - 2meter
Style RS-01SR(MB)
Installation Type Four-way
Color  Silver
Series Magnetic type
Post Material Aluminum alloy with anodizing
Head Diameter Ø74mm
Post Diameter Ø74mm
Base Diameter Ø140mm
Height  980mm
Weight 3kg

Magnetic Base & Magnetic Hook Stanchions – Our Difference vs. the Rest

When it comes to crowd control and line management, both magnetic base and magnetic hook connection stanchions have become increasingly popular for their ease of use and flexibility. But not all magnetic systems are created equal. Our solutions combine both technologies to provide maximum stability and adaptability for modern venues.

Magnetic Base Stanchion – Strength & Flexibility

  • No-Drill Installation: Stainless steel floor plates attach with heavy-duty adhesive—no bolts or core drilling required.

  • Instant Magnetic Locking: Stanchions snap into place securely with powerful magnets, staying upright against bumps and traffic.

  • Safe & Durable: Beveled base edges reduce tripping hazards, while stainless steel hardware ensures long-lasting durability.

  • Emergency Safety: All units come with an Emergency Breakaway Belt End for quick evacuation.

  • Easy Reconfiguration: Posts can be removed and repositioned in seconds, with no floor damage when plates are removed.

Magnetic Hook Connection

  • All-Around Magnetic Head: The post head features a full-circle magnetic zone, allowing hooks to connect at any angle.

  • Strong & Reliable: The magnetic hook connection is engineered for secure linking, ensuring the barrier remains consistent and aligned.

  • Quick Setup: Perfect for temporary setups, exhibitions, or venues needing frequent layout changes.

Why Choose Us Over Others?

While many competitors focus only on basic stanchion functions, our dual magnetic system delivers both ground stability and connection flexibility. With heavy-duty materials, customizable belts, and aesthetic options, we ensure your crowd control system is not only safe and durable but also visually appealing.

The Verdict:
Our stanchions provide stability from the base and flexibility at the head, making them the most versatile solution on the market today.
